MD controls Harley Davidson wiring loom harness Ultimate Motorcycle Ultimate Motorcycle ideal chopper as minimal wiring This little unit has the same functions as the standard MD Cycle Control box but instead of running five wires through and out of your handlebar there is only one wire that comes out and goes to the module which is hidden somewhere on the bike! There is no way to get a cleaner look. Detailed instructions Push button switches and Super small size allow stealth mounting in headlight!!
This ultimate motorbike cycle control box is one of the smallest units on the market. It allows the use of push buttons for functions such as high-low beam, turn signals left and right, horn and starter button! The unit can be used with conventional or LED turn signals. Due to its size it can be installed almost anywhere on the bike, even in the headlight call me for further detail if any questions as i habve built MANY bikes with this awesome wiring box complete with wires attached too!
This is truly small 1 wire to handlebar controls setupo !
This little unit has the same functions as the standard MD Cycle Control box but instead of running five wires through and out of your handlebar there is only one wire that comes out and goes to the module which is hidden somewhere on the bike!
There is no way to get a cleaner look.
The main sensor is hidden inside the handlebars.
When each switch is pressed a signal is sent to the module and the function is performed.
Detailed instructions included.
Ultra-compact switch box which is small enough to fit into most headlamp shells and pretty much any where else on a bike. The MD Cycle Control unit allows to operate starter, hi/low beam, horn and turn signals by means of micro button switches from your handlebars. This particular version includes a hazard light function and turn signal cancellation. It is compatible with all types of turn signals, including Kellermann LED or Micro. Sold complete with detailed instructions.

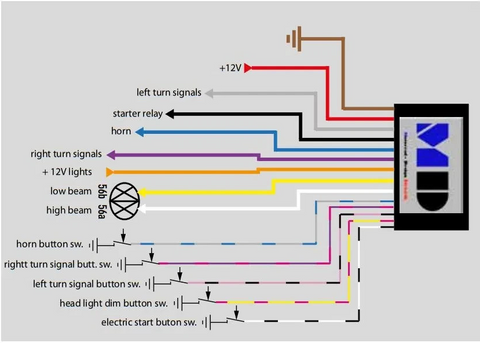

Allows Operation Of:
- Starter
- Hi/Low Beam
- Horn
- Turn Signals
- Additional Hazard Light Function
- Automatic Turn Signal Cancellation (17 seconds)
W x H x D: 49 x 45 x 22 mm
| Product ID | 10115785883948 |
| Vendor | MD Controls |
